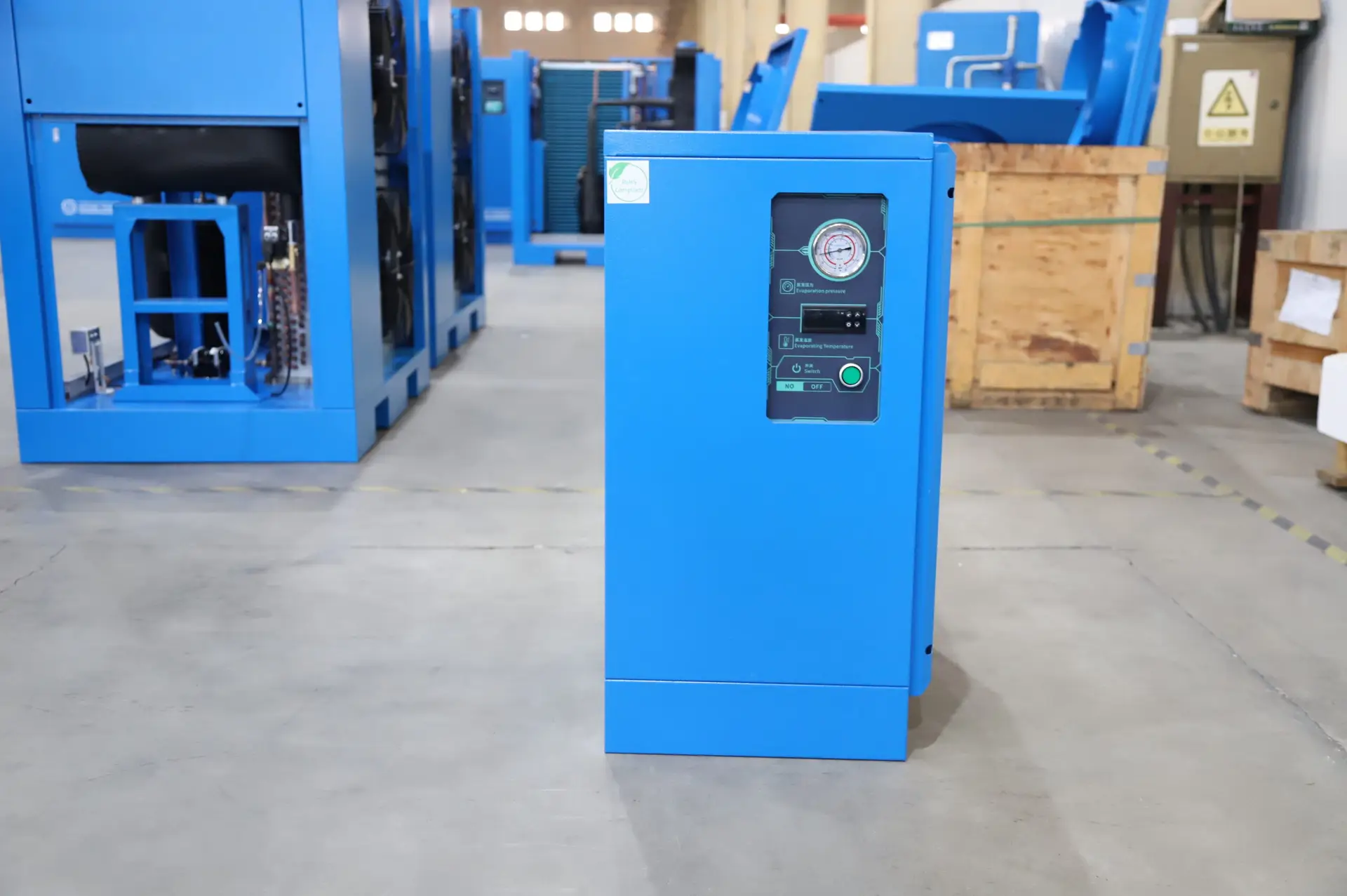

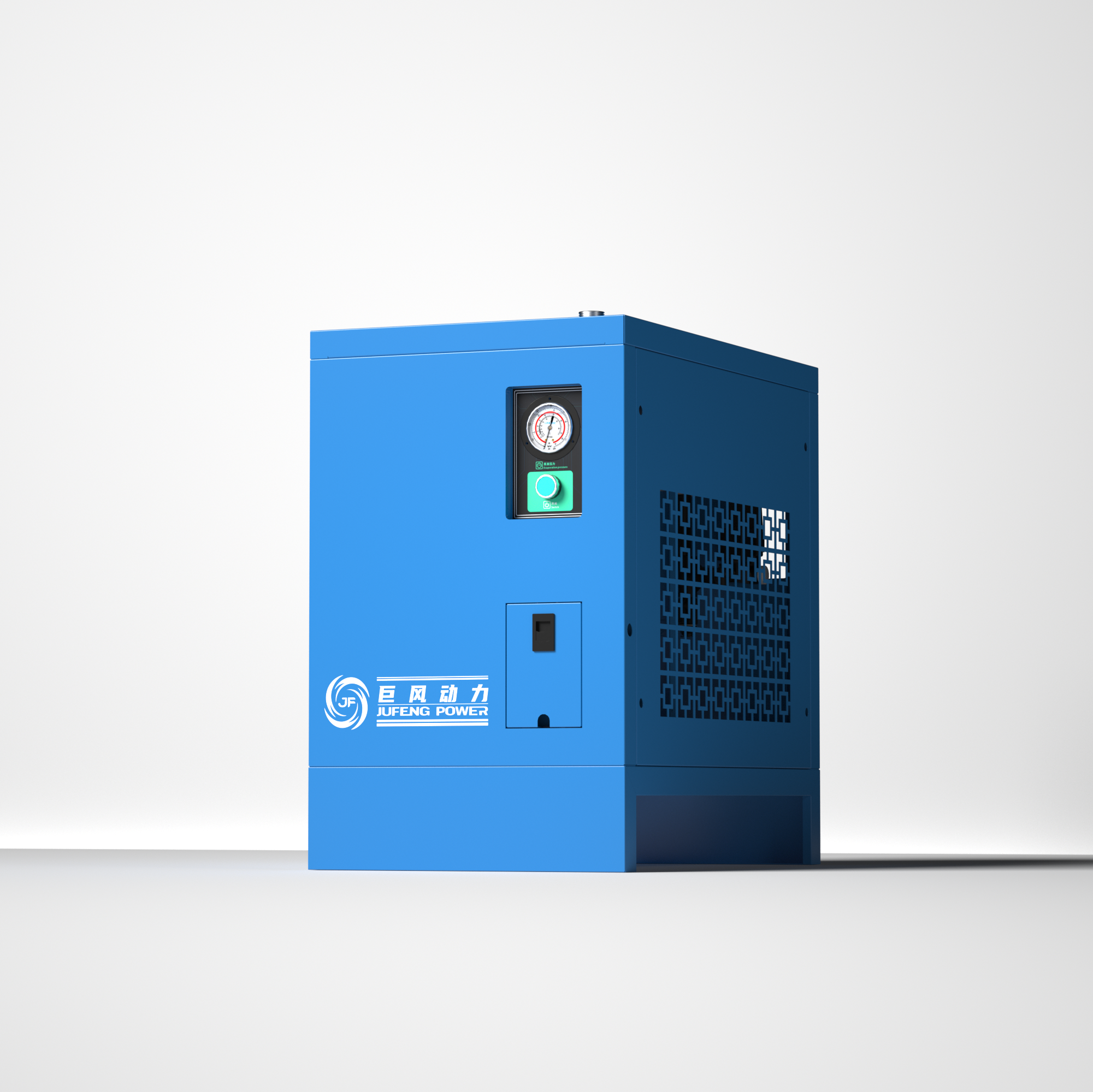

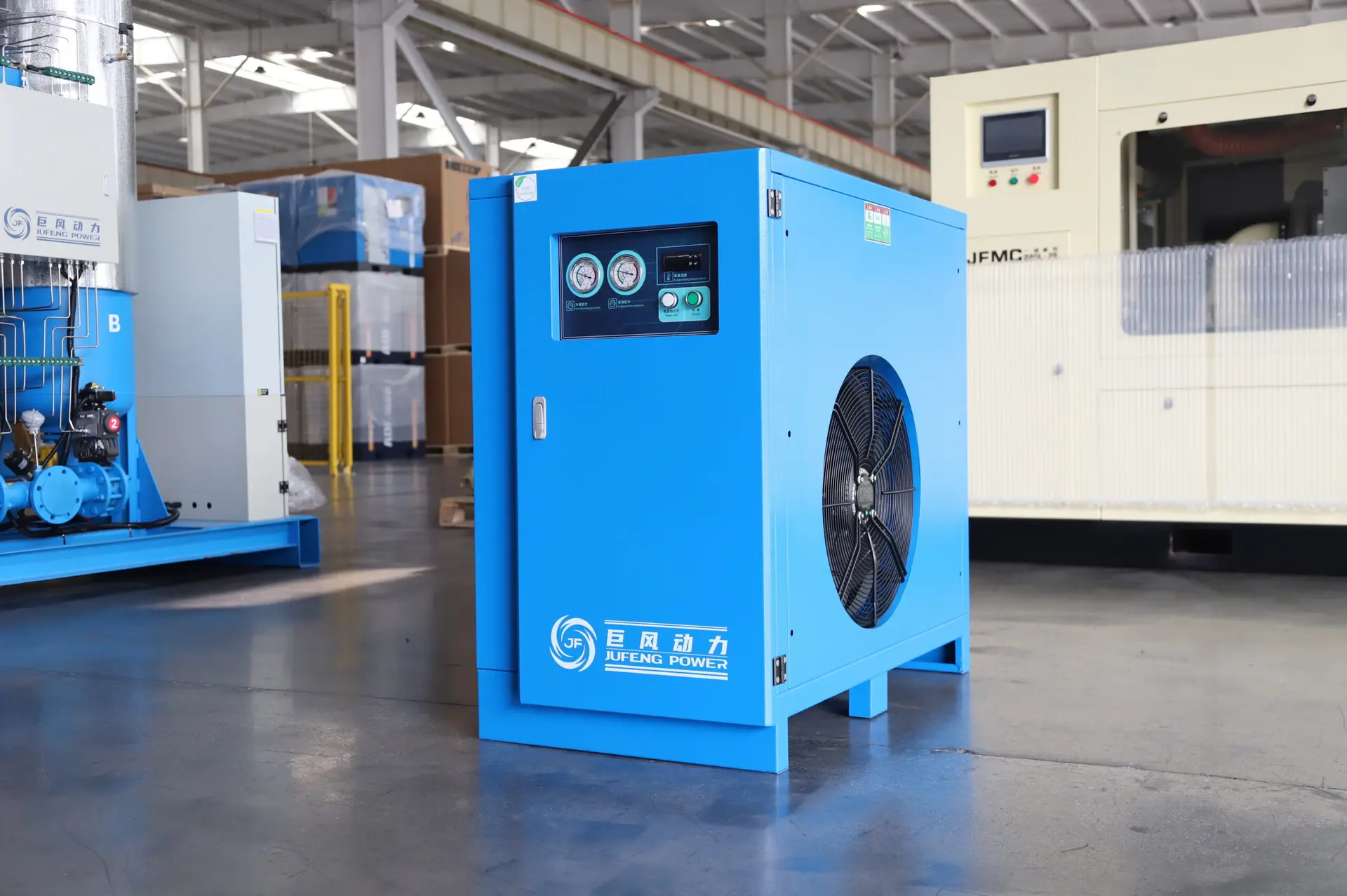

JF Series Refrigerated Air Dryers

Working Principle:
• A refrigerated dryer operates by lowering the temperature of saturated compressed
air, causing the water vapor in the compressed air to condense into liquid water.
This liquid water is then collected and discharged through a water separator,
thereby reducing the moisture content in the compressed air and delivering
relatively dry compressed air to the customer.
• JUFENG Refrigerated Dryers can be custom-designed as non-standard high-
performance OEM units tailored to your specific requirements.

Contact Experts

Advantages of JF-Series Refrigerated Air Dryers

Key Advantages

The JF series, as the most important, basic, and widely used core series of the Jufeng Refrigerated Dryer family, boasts low cost yet reliable performance as its most significant advantage.

• Utilizes fully enclosed refrigeration compressors from leading domestic and international brands, delivering powerful cooling and stable operation.

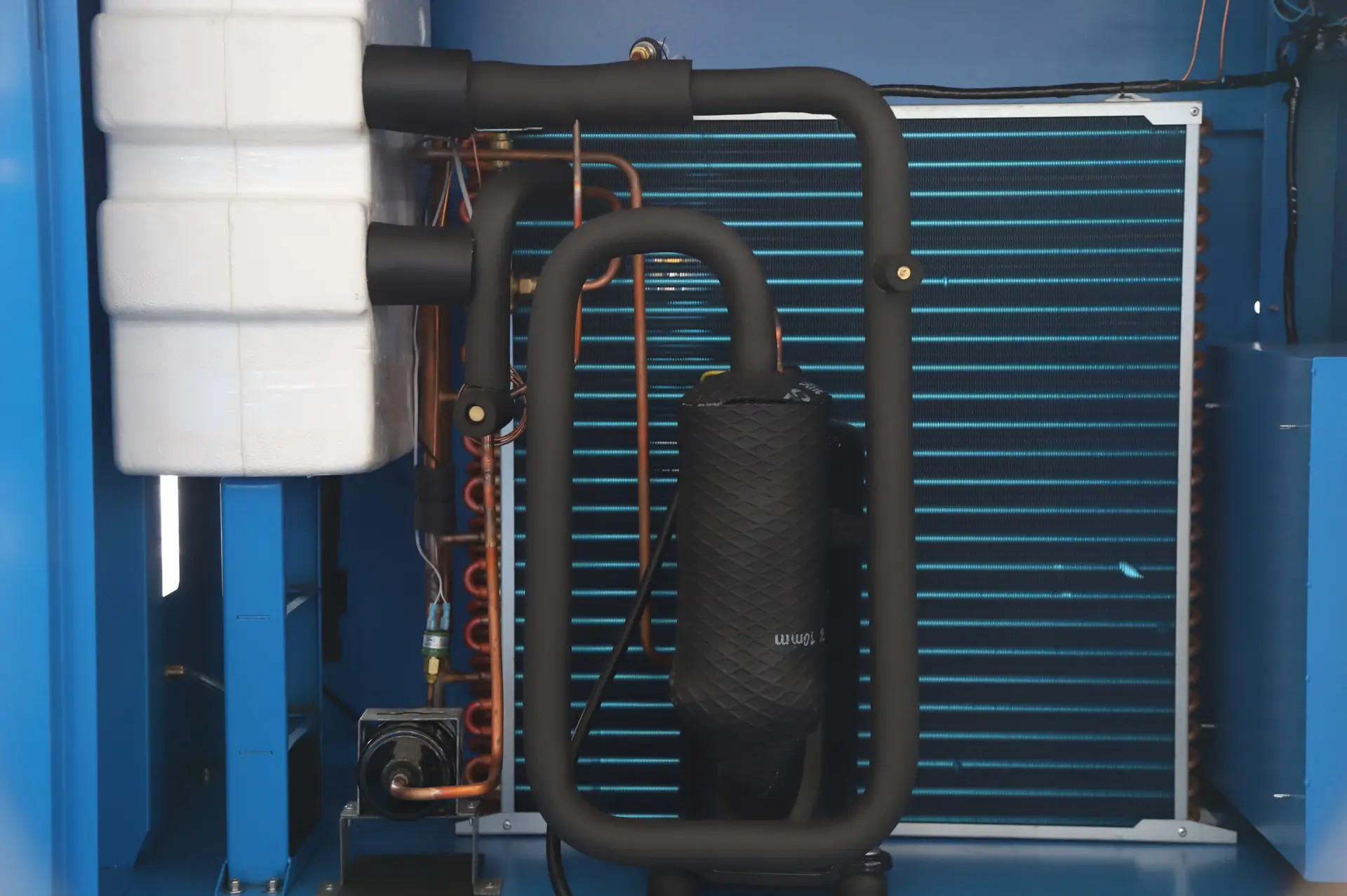

• Heat exchangers and condensers are constructed from high-quality materials with excellent heat transfer coefficients.
• Specially designed cold/heat exchangers utilize the cold output air to precool the incoming hot air, preventing pipeline condensation and improving energy efficiency.
• High-performance refrigeration components and control elements ensure superior performance and extended service life.

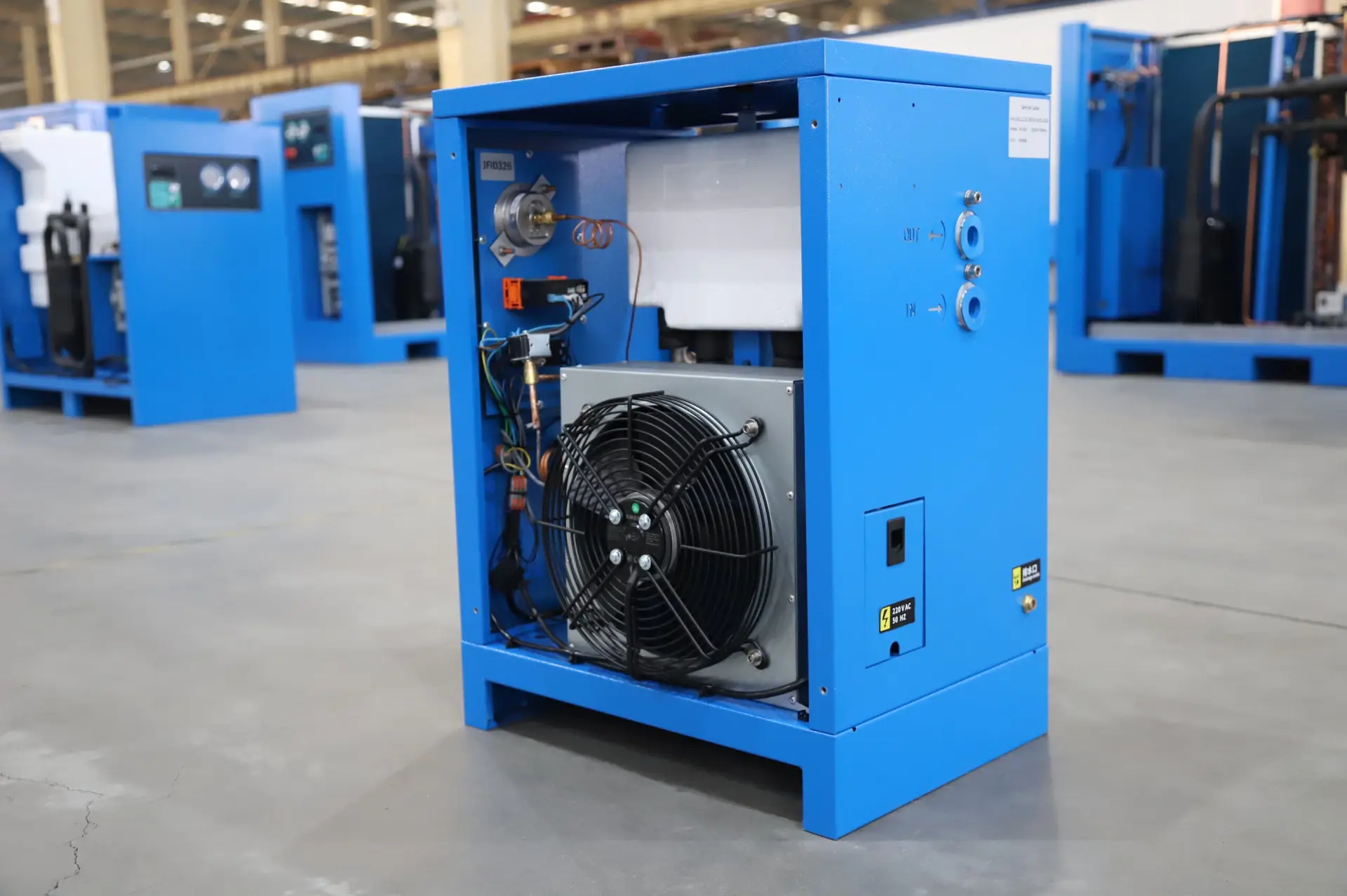

• The cooling system incorporates pressure-switch-controlled fans for precise temperature regulation and optimized refrigeration efficiency.
• Unique refrigeration system design achieves lower evaporation temperatures without ice formation, adapting to complex working conditions without ice blockage.

Product Vedio

Product Specification

Model	Air flow (Nm³/min)	Pressure (Mpa)	Power Supply	Air Pipe Connection	Refrigerant	Total Power Consumption(kw)	Dimensions (L × W × H) mm	Weight (kg)
JF-010	1.2	0.7~1.6	220~240VAC-50Hz-1P	G¾"	R410A	0.54	550x450x720	37
JF-015	1.6	0.7~1.6	220~240VAC-50Hz-1P	G1"	R410A	0.6	550x450x750	43
JF-020	2.6	0.7~1.6	220~240VAC-50Hz-1P	G1"	R410A	0.86	630x450x790	49.5
JF-030	3.8	0.7~1.6	220~240VAC-50Hz-1P	G1½"	R410A	0.91	660x450x850	57.5
JF-050	6.9	0.7~1.6	220~240VAC-50Hz-1P	G1½"	R410A	1.97	860x530x960	80.5
JF-085	8.5	0.7~1.6	220~240VAC-50Hz-1P	G1½"	R410A	3.3	860x530x960	86.2
JF-105	10.5	0.7~1.6	220~380VAC-50Hz-1P	G2"	R410A	4.92	920x560x1060	96.8
JF-135	13.5	0.7~1.6	380~415VAC-50Hz-3P	G2"	R410A	3.43	1150x660x1110	126
JF-150	15	0.7~1.6	380~415VAC-50Hz-3P	G2"	R410A	3.8	1150x660x1110	141
JF-180	18	0.7~1.6	380~415VAC-50Hz-3P	G2½"	R410A	4.99	1310x818x1392	240.5
JF-220	23	0.7~1.6	380~415VAC-50Hz-3P	G2½"	R410A	4.99	1310x818x1392	240.5
JF-250	25	0.7~1.6	380~415VAC-50Hz-3P	G3"	R410A	5.37	1300x870x1441	256
JF--280	28	0.7~1.6	380~415VAC-50Hz-3P	G3"	R410A	5.37	1300x870x1441	256
JF-320	32	0.7~1.3	380~415VAC-50Hz-3P	DN100	R410A	6.56	1420x920x1586	332
JF-380	38	0.7~1.3	380~415VAC-50Hz-3P	DN100	R410A	8.53	1420x920x1586	373
JF-450	45	0.7~1.3	380~415VAC-50Hz-3P	DN100	R410A	10.13	1420x920x1586	382
JF-500	50	0.7~1.3	380~415VAC-50Hz-3P	DN100	R410A	11.4	1860x1500x1790	695
JF-550	55	0.7~1.3	380~415VAC-50Hz-3P	DN125	R410A	12.1	1860x1500x1790	695
JF-600	60	0.7~1.3	380~415VAC-50Hz-3P	DN125	R410A	13.2	1860x1500x1790	695
JF-650	65	0.7~1.3	380~415VAC-50Hz-3P	DN125	R410A	14.3	1860x1500x1790	695

If you have additional production specifications and purity requirements, you can contact our equipment engineers for professional answers and one-on-one customized solutions with the opportunity to receive discounted pricing!
