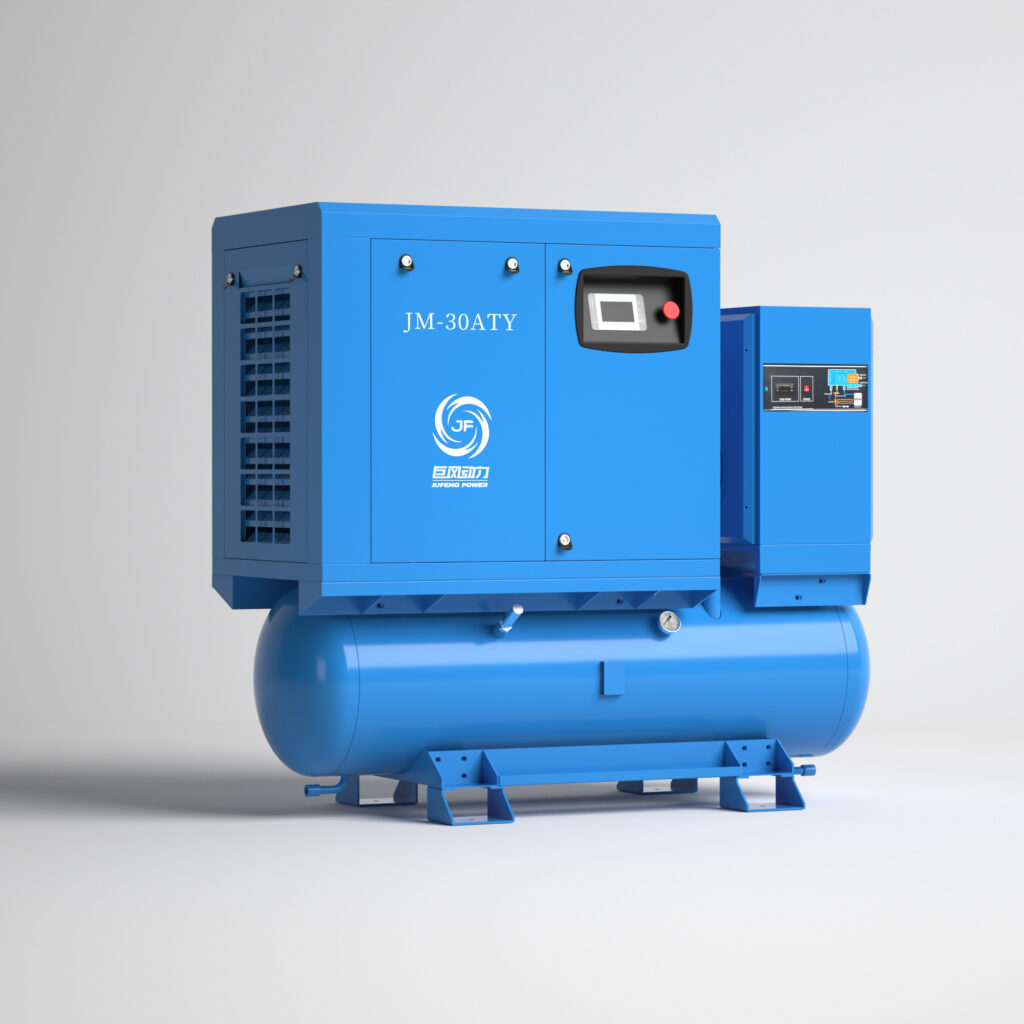

Laser Cutting Machine Series
Laser Cutting Machine series is specially configured for laser cutting. It is able to integrate compressor, dryer, filters and air tank to reduce pipeline energy loss and achieve high energy efficiency. Multi-stage purification produces dry, oil-free and high-quality compressed air to safeguard laser cutting accuracy. With vibration reduction and soundproof structure, it runs quietly. Compact layout saves floor space and offers stable, all-in-one air support for laser cutting processes.
Advantages of Laser Cutting Machine Series
Key Advantages
- High efficiency and energy saving: Integrated 4-in-1 or 5-in-1 compact design for laser cutting, combining air compressor, dryer, filter and tank. It minimizes pipeline loss and redundant power consumption, delivering optimized energy efficiency matched to the stable air demand of laser cutting equipment.
- The quality of gas produced is high: Multi-stage precision filtration and drying modules remove moisture, oil and solid contaminants effectively. The stable clean dry air protects laser optics and cutting heads, ensuring consistent cutting precision and smooth workpiece surface.
- Low noise and light sound: Reasonable internal layout, vibration damping structure and integrated sound insulation shell weaken mechanical vibration and airflow noise. It keeps quiet operation on-site and fits neatly inside laser cutting workshops.
Specification
| Model | Power(kw) | Rated Pressure(MPa) | Pressure range(MPa) | Displacement m³/min | Weight(kg) | Dimension (L×W×H) mm | Outlet |
|---|---|---|---|---|---|---|---|
| JLC-20AY/16 | 15 | 1.55 | 1.3-1.55 | 0.56-1.4 | 250 | 1150*750*960 | 3600 |
| JLC-30AY/16 | 22 | 1.55 | 1.3-1.55 | 0.92-2.3 | 250 | 1150*750*960 | 3600 |
| JLC-50AY/16 | 37 | 1.55 | 1.3-1.55 | 1.28-3.2 | 423 | 1200*960*1320 | 3600 |
| Single-tank 4-in-1 | |||||||
| JLC-20AY/16 | 15 | 1.55 | 1.3-1.55 | 0.56-1.4 | 450 | 1770*750*1590 | 3600 |
| JLC-30AY/16 | 22 | 1.55 | 1.3-1.55 | 0.92-2.3 | 450 | 1770*750*1590 | 3600 |
| Dual-tank 5-in-1 | |||||||
| JLC-30AY/16 | 22 | 1.55 | 1.3-1.55 | 0.92-2.3 | 650 | 2280*1120*1590 | 3600 |
| Three-tank 5-in-1 | |||||||
| JLC-50AY/16 | 37 | 1.55 | 1.3-1.55 | 1.28-3.2 | 423 | 2100*1350*2110 | 3600 |
If you have additional production specifications and purity requirements, you can
contact
our equipment engineers for professional answers and one-on-one customized solutions with the opportunity to receive discounted pricing!
