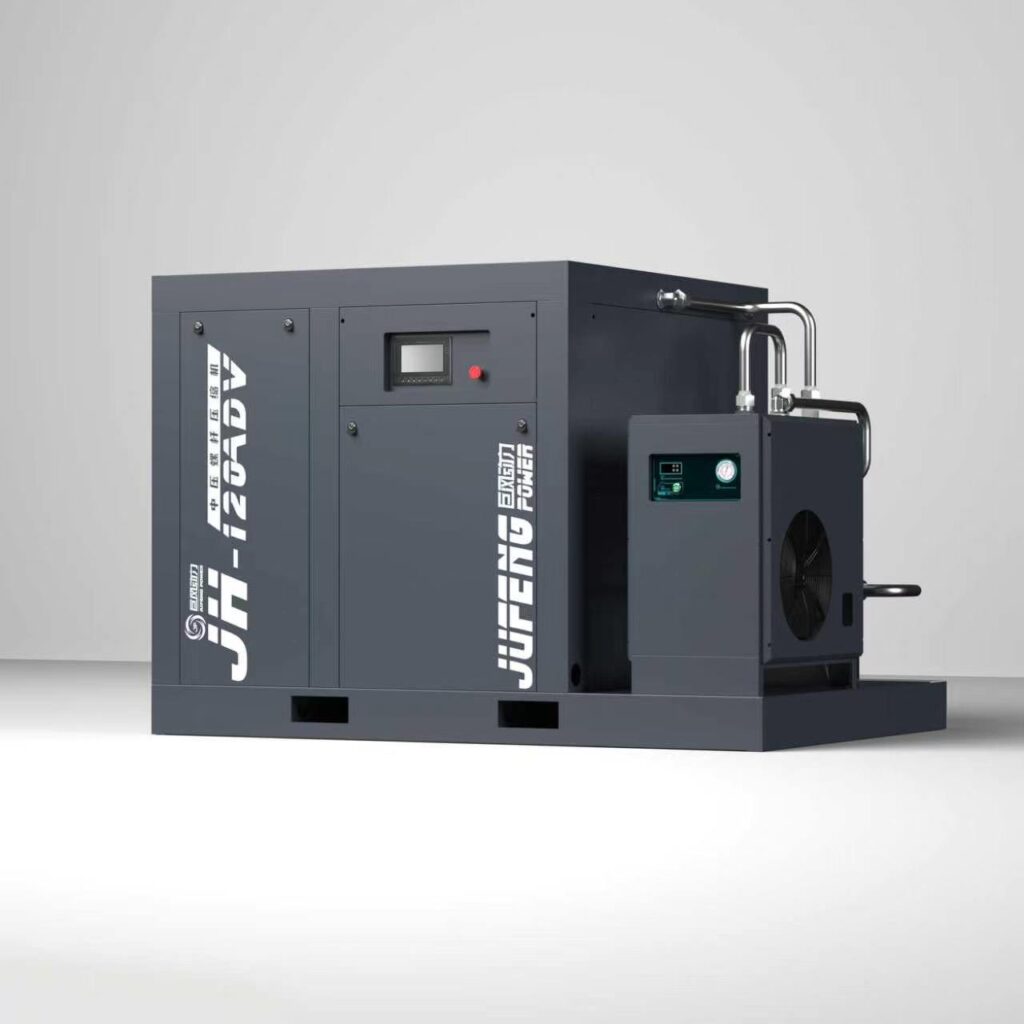

Medium Pressure Screw Air Compressor
Medium Pressure Screw Air Compressor adopts a special rotor profile optimized for medium-pressure working conditions to lower compression loss and save electricity. Its reinforced main unit maintains stable pressure and high efficiency under continuous heavy load. Equipped with bass vibration suppression and sound insulation design, it reduces low-frequency rumbling noise. The dedicated intelligent control system offers real-time monitoring and overpressure protection, ideal for industries requiring reliable medium-pressure compressed air.
Advantages of Medium Pressure Screw Air Compressor
Key Advantages
- Energy conservation and electricity saving: Specially optimized rotor profile for medium-pressure compression reduces internal leakage and compression heat loss. It cuts extra power consumption compared with boosting air from low pressure, delivering obvious electricity savings for steady medium-pressure air supply.
- Stable and efficient: The reinforced host and matched transmission structure are engineered to sustain continuous medium-pressure working conditions. It maintains consistent exhaust pressure and high volumetric efficiency under long-hour heavy-load operation.
- Bass noise reduction: Reinforced damping bases and optimized low-frequency suppression structure target low-frequency bass vibration unique to medium-pressure compression. Together with the sound insulation cabinet, it weakens rumbling noise effectively.
- Intelligent control: The dedicated medium-pressure controller monitors pressure, temperature and load in real time. It supports automatic load-unload, overpressure protection and fault alert, making operation convenient and safe for medium-pressure applications.
Specification
| Model | Power(kw) | Rated Pressure(MPa) | Displacement m³/min | Dimension (L×W×H), mm | Weight(kg) | Noise dB(A) | Outlet | Remark |
|---|---|---|---|---|---|---|---|---|
| One Stage | ||||||||
| JH-20AVI | 15 | 2 | 1.1 | 1200×900×1200 | 440 | 66 | DN25 | Cooling method: Air-cooled Starting method: Variable-frequency |
| JH-30AVI | 22 | 3 | 1 | 1200×900×1200 | 440 | 66 | DN25 | |
| JH-40AVI | 30 | 2 | 2.5 | 1350×950×1290 | 620 | 70 | DN25 | |
| JH-50AVI | 37 | 3 | 2.1 | 1350×950×1290 | 620 | 70 | DN25 | |
| 30 bar, Two Stage | ||||||||
| JH-80ADV | Stage 1: 30kw Stage 2: 30kw | 3 | 2.0-4.0 | 2100×1500×1350 | 1100 | 70 | DN20 | Cooling method: Air-cooled Starting method: Variable-frequency Standard configuration: Intercooling system |
| Stage 1: 30kw Stage 2: 30kw | ||||||||
| JH-90ADV | Stage 1: 37kw Stage 2: 30kw | 3 | 2.5-5.0 | 2400×1680×1650 | 1460 | 72 | DN25 | |
| Stage 1: 30kw Stage 2: 30kw | ||||||||
| JH-110ADV | Stage 1: 37KW Stage 2: 45KW | 3 | 3.0-6.0 | 2400×1680×1650 | 1560 | 73 | DN25 | |
| Stage 1: 37KW Stage 2: 45KW | ||||||||
| JH-135ADV | Stage 1: 45KW Stage 2: 55KW | 3 | 4.0-8.0 | 2980×2150×1950 | 1830 | 76 | DN40 | |
| Stage 1: 45KW Stage 2: 55KW | ||||||||
| JH-175ADV | Stage 1: 55KW Stage 2: 55KW | 3 | 5.0-10.0 | 2980×2150×1950 | 2220 | 80 | DN40 | |
| Stage 1: 55KW Stage 2: 55KW | ||||||||
| JH-220ADV | Stage 1: 55KW Stage 2: 75KW | 3 | 6.0-12.0 | 2980×2150×1950 | 2550 | 80 | DN40 | |
| Stage 1: 55KW Stage 2: 75KW | ||||||||
| 30 bar, Three Stage | ||||||||
| JH-70ADV | Stage 1: 22KW(2 Stage) Stage 2: 30KW | 3 | 2.0-4.0 | 2100×1500×1350 | 1100 | 70 | DN20 | Cooling method: Air-cooled Starting method: Variable-frequency Standard configuration: Intercooling system |
| Stage 1: 22KW(2 Stage) Stage 2: 30KW | ||||||||
| JH-80ADV | Stage 1: 22KW(2 Stage) Stage 2: 37KW | 3 | 2.5-5.0 | 2400×1680×1650 | 1460 | 72 | DN25 | |
| Stage 1: 22KW(2 Stage) Stage 2: 37KW | ||||||||
| JH-100ADV | Stage 1: 30KW(2 Stage) Stage 2: 45KW | 3 | 3.0-6.0 | 2400×1680×1650 | 1560 | 73 | DN25 | |
| Stage 1: 30KW(2 Stage) Stage 2: 45KW | ||||||||
| JH-125ADV | Stage 1: 37KW(2 Stage) Stage 2: 55KW(2 Stage) | 3 | 4.0-8.0 | 2980×2150×1950 | 1830 | 76 | DN40 | |
| Stage 1: 37KW(2 Stage) Stage 2: 55KW(2 Stage) | ||||||||
| JH-160ADV | Stage 1: 45KW(2 Stage) Stage 2: 75KW | 3 | 5.0-10.0 | 2980×2150×1950 | 2220 | 80 | DN40 | |
| Stage 1: 45KW(2 Stage) Stage 2: 75KW | ||||||||
| JH-175ADV | Stage 1: 55KW(2 Stage) Stage 2: 75KW | 3 | 6.0-12.0 | 2980×2150×1950 | 2550 | 80 | DN40 | |
| Stage 1: 55KW(2 Stage) Stage 2: 75KW | ||||||||
| 40 bar, Two Stage | ||||||||
| JH-80ADV | Stage 1: 30KW Stage 2: 37KW | 4 | 2.0-4.0 | 2100×1500×1350 | 1100 | 70 | DN20 | Cooling method: Air-cooled Starting method: Variable-frequency Standard configuration: Intercooling system |
| Stage 1: 30KW Stage 2: 37KW | ||||||||
| JH-90ADV | Stage 1: 37KW Stage 2: 45KW | 4 | 2.5-5.0 | 2400×1680×1650 | 1460 | 72 | DN25 | |
| Stage 1: 37KW Stage 2: 45KW | ||||||||
| JH-110ADV | Stage 1: 37KW Stage 2: 55KW | 4 | 3.0-6.0 | 2400×1680×1650 | 1560 | 73 | DN25 | |
| Stage 1: 37KW Stage 2: 55KW | ||||||||
| JH-135ADV | Stage 1: 45KW Stage 2: 75KW | 4 | 4.0-8.0 | 2980×2150×1950 | 1830 | 76 | DN40 | |
| Stage 1: 45KW Stage 2: 75KW | ||||||||
| JH-175ADV | Stage 1: 55KW Stage 2: 90KW | 4 | 5.0-10.0 | 2980×2150×1950 | 2220 | 80 | DN40 | |
| Stage 1: 55KW Stage 2: 90KW | ||||||||
| JH-220ADV | Stage 1: 75KW Stage 2: 90KW | 4 | 6.0-12.0 | 2980×2150×1950 | 2550 | 80 | DN40 | |
| Stage 1: 75KW Stage 2: 90KW | ||||||||
If you have additional production specifications and purity requirements, you can
contact
our equipment engineers for professional answers and one-on-one customized solutions with the opportunity to receive discounted pricing!
