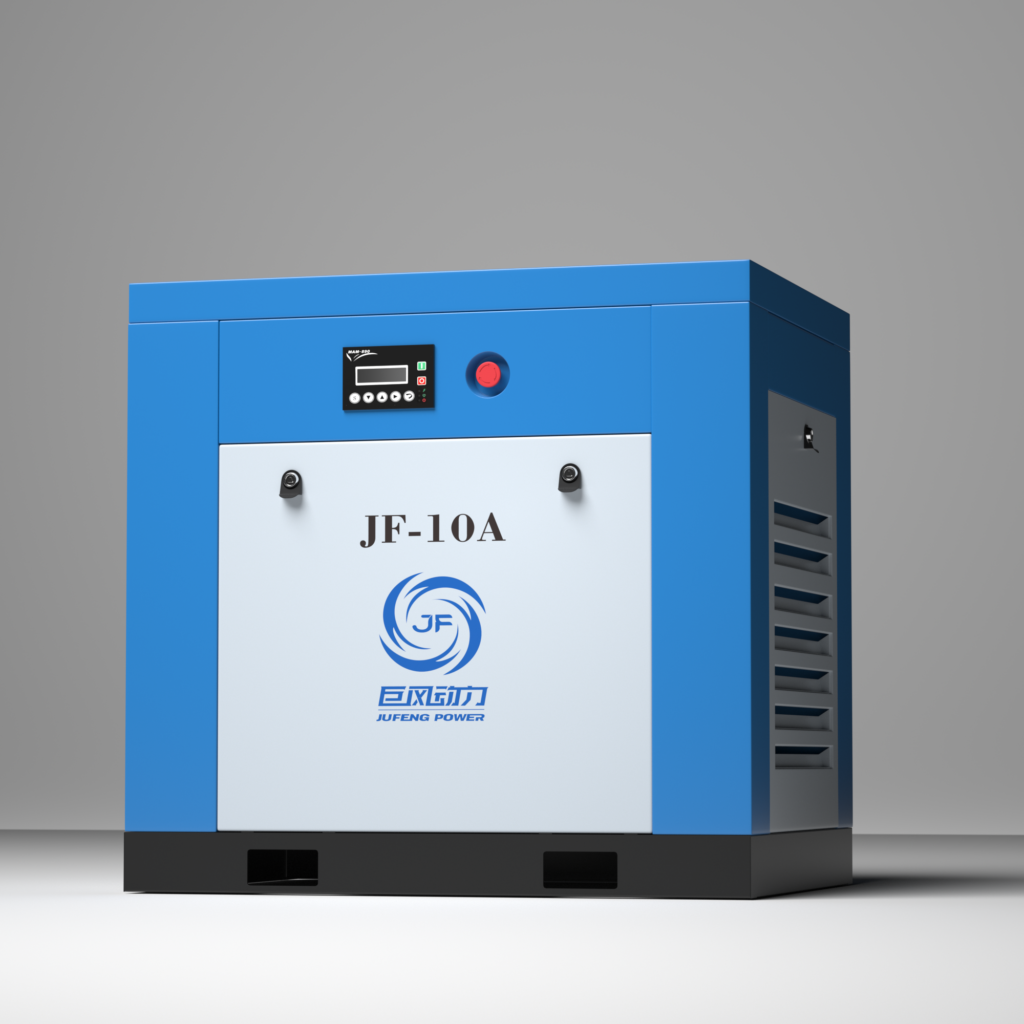

PM Screw Air Compressor
PM screw air compressor adopts a high-efficiency permanent magnet synchronous motor and optimized rotor profile to achieve outstanding energy-saving performance, especially under variable load conditions. Its vibration damping structure and soundproof enclosure ensure low-noise operation with low pollution. The advanced intelligent control system monitors key parameters in real time, supports automatic regulation and fault reminder. It is reliable and easy to operate, suitable for diverse industrial air supply scenarios with fluctuating air consumption.
Advantages of PM Screw Air Compressor
Key Advantages
- High efficiency and energy saving: Equipped with high-efficiency permanent magnet synchronous motor and optimized screw rotor profile, it maintains excellent efficiency even under partial load conditions. It greatly reduces motor energy loss compared with conventional asynchronous motors and cuts long-term electricity expenses.
- Low noise and environmentally friendly: Precision balanced rotor assembly, shock-absorbing structure and sound insulation enclosure effectively suppress vibration and running noise. It features low oil carry-over and low exhaust emissions, meeting environmental requirements for modern workshops.
- Advanced control system: Intelligent controller supports real-time monitoring of pressure, temperature and operating status. It realizes automatic load/unload, fault alarm and parameter adjustment, facilitating convenient operation and remote management.
Specification
| Model | Power(kw) | Rated Pressure(MPa) | Pressure range(MPa) | Displacement m³/min | Dimension (L×W×H) mm | Weight(kg) | Rotational Speed | Outlet |
|---|---|---|---|---|---|---|---|---|
| JM-10AV | 7.5 | 0.7 | 0.6-0.8 | 0.68-1.35 | 900x700x875 | 190 | 3000 | G3/4" |
| 1 | 0.85-1.0 | 0.55-1.1 | ||||||
| 1.2 | 1.1-1.2 | 0.43-0.86 | ||||||
| JM-15AV | 11 | 0.7 | 0.6-0.8 | 0.9-1.8 | 1050x750x1030 | 280 | 3000 | G3/4" |
| 1 | 0.85-1.0 | 0.85-1.7 | ||||||
| 1.2 | 1.1-1.2 | 0.6-1.2 | ||||||
| JM-20AV | 15 | 0.7 | 0.6-0.8 | 1.2-2.4 | 1050x750x1030 | 290 | 3800 3000 | G3/4" |
| 1 | 0.85-1.0 | 1.15-2.3 | ||||||
| 1.2 | 1.1-1.2 | 0.85-1.7 | ||||||
| JM-25AV | 18.5 | 0.8 | 0.6-0.8 | 1.6-3.2 | 1380x850x1160 | 420 | 3000 | G1" |
| 1 | 0.85-1.0 | 1.5-3.0 | ||||||
| 1.2 | 1.1-1.2 | 1.3-2.6 | ||||||
| JM-30AV JM-30WV | 22 | 0.7 | 0.6-0.8 | 1.9-3.8 | 1380x850x1160 | 430 | 3000 | G1" |
| 1 | 0.85-1.0 | 1.8-3.6 | ||||||
| 1.2 | 1.1-1.2 | 1.55-3.1 | ||||||
| JM-40AV JM-40WV | 30 | 0.7 | 0.6-0.8 | 2.6-5.2 | 1380x850x1160 | 510 | 3000 | G1" |
| 1 | 0.85-1.0 | 2.5-5 | ||||||
| 1.2 | 1.1-1.2 | 2.1-4.2 | ||||||
| JM-50AV JM-50WV | 37 | 0.8 | 0.6-0.8 | 3.35-6.7 | 1500x1000x1320 | 600 | 3000 | G1-1/2" |
| 1 | 0.85-1.0 | 3.1-6.2 | ||||||
| 1.2 | 1.1-1.2 | 2.6-5.2 | ||||||
| JM-60AV JM-60WV | 45 | 0.7 | 0.6-0.8 | 3.7-7.4 | 1500x1000x1320 | 610 | 3000 | G1-1/2" |
| 1 | 0.85-1.0 | 3.5-7.0 | ||||||
| 1.2 | 1.1-1.2 | 3.15-6.3 | ||||||
| JM-75AV JM-75WV | 55 | 0.7 | 0.6-0.8 | 5.0-10 | 1800x1250x1670 | 1140 | 3800 3000 | G2" |
| 1 | 0.85-1.0 | 4.8-9.6 | ||||||
| 1.2 | 1.1-1.2 | 4.0-8 | ||||||
| JM-100AV JM-100WV | 75 | 0.7 | 0.6-0.8 | 6.5-13 | 1800x1250x1670 | 1180 | 3000 | G2" |
| 1 | 0.85-1.0 | 6.3-12.6 | ||||||
| 1.2 | 1.1-1.2 | 5.5-11 | ||||||
| JM-120AV JM-120WV | 90 | 0.7 | 0.6-0.8 | 8.0-16 | 1800x1250x1670 | 1400 | 3500 3000 | G2" |
| 1 | 0.85-1.0 | 7.5-15 | ||||||
| 1.2 | 1.1-1.2 | 6.5-13 | ||||||
| JM-150AV JM-150WV | 110 | 0.7 | 0.6-0.8 | 10.5-21 | 2500x1470x1800 | 1870 | 3000 | G2-1/2" |
| 1 | 0.85-1.0 | 9.9-19.8 | ||||||
| 1.2 | 1.1-1.2 | 8.5-17 | ||||||
| JM-175AV JM-175WV | 132 | 0.7 | 0.6-0.8 | 12.25-24.5 | 2500x1470x1800 | 1920 | 3000 | G2-1/2" |
| 1 | 0.85-1.0 | 11.6-23.2 | ||||||
| 1.2 | 1.1-1.2 | 10.0-20 | ||||||
| JM-200AV JM-200WV | 160 | 0.7 | 0.6-0.8 | 14.35-28.7 | 3000x1700x1950 | 2650 | 3000 | DN80 |
| 1 | 0.85-1.0 | 13.8-27.6 | ||||||
| 1.2 | 1.1-1.2 | 11.75-23.5 | ||||||
| JM-250AV JM-250WV | 185 | 0.7 | 0.6-0.8 | 16-32 | 3000x1700x1950 | 2760 | 3000 | DN80 |
| 1 | 0.85-1.0 | 15.2-30.4 | ||||||
| 1.2 | 1.1-1.2 | 13.7-27.4 | ||||||
| JM-300AV JM-300WV | 220 | 0.7 | 0.6-0.8 | 18.35-36.7 | 3200x1980x2150 | 4060 | 3000 | DN100 |
| 1 | 0.85-1.0 | 17.15-34.3 | ||||||
| 1.2 | 1.1-1.2 | 15-30 | ||||||
| JM-350AV JM-350WV | 250 | 0.7 | 0.6-0.8 | 20.5-41 | 3200x1980x2150 | 4300 | 3000 | DN100 |
| 1 | 0.85-1.0 | 18.1-36.2 | ||||||
| 1.2 | 1.1-1.2 | 17.75-35.5 |
If you have additional production specifications and purity requirements, you can
contact
our equipment engineers for professional answers and one-on-one customized solutions with the opportunity to receive discounted pricing!
