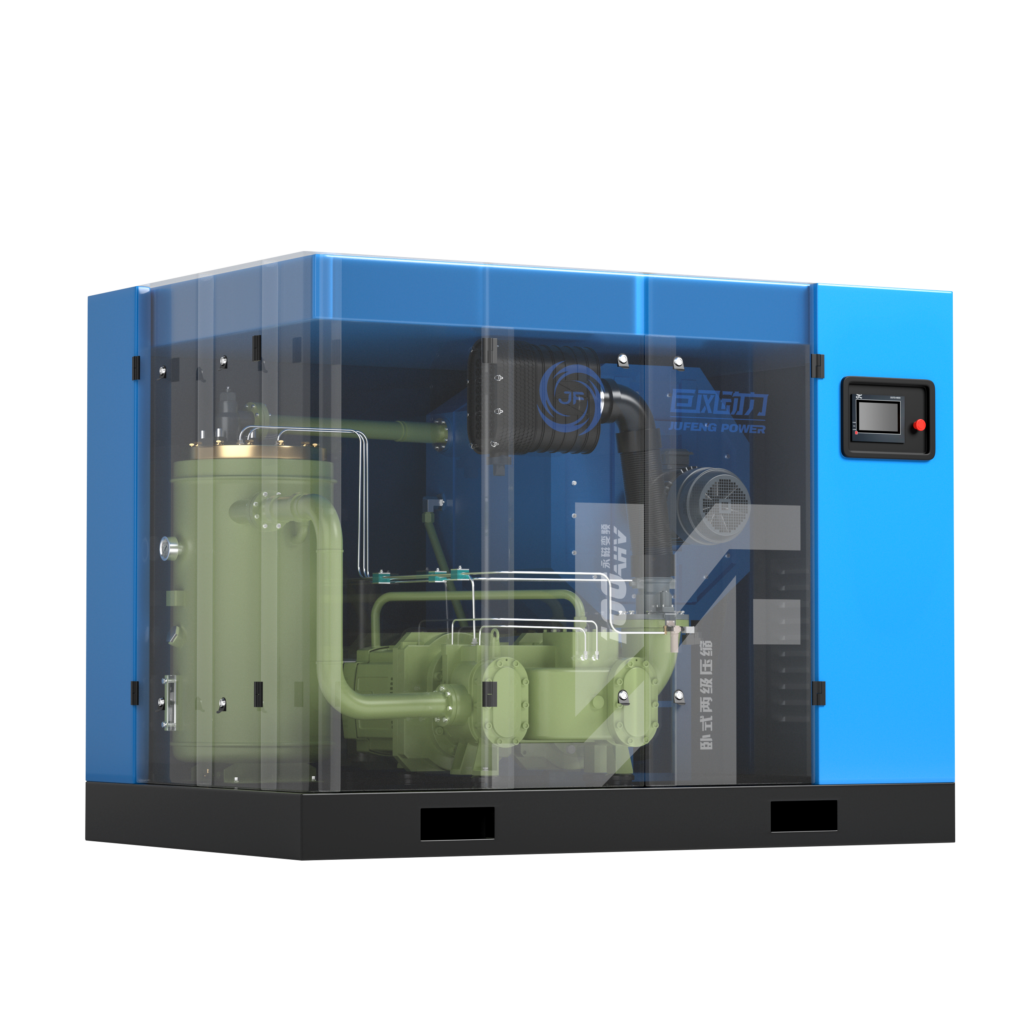

Two Stage Two Motor VSD Screw Air Compressor
Two Stage Two Motor VSD Screw Air Compressor separately drives the low-pressure and high-pressure rotors with independent power systems. It allows optimized pressure ratio distribution and individual speed adjustment for each stage, securing first-class energy efficiency and remarkable energy savings. Fitted with IP65-rated drive motors, it resists dust and splashing water. It is tailored for heavy-duty, harsh workshops demanding high-efficiency compressed air with fluctuating air consumption.
Advantages of Two Stage Two Motor VSD Screw Air Compressor
Key Advantages
Horizontal layout, low center of gravity
Compared with the “top-bottom arrangement” structure of
the traditional two-stage compression main unit, both the
first and second stage compression units can now be fixed on
the chassis of the machine box, which effectively fixes the
vibration source and alleviates the vibration of the main unit,
making the entire air compressor system operate stably and
efficiently.
High-efficiency and energy-saving dualpermanent magnet motors
The permanent magnet synchronous motor adopts high-
performance neodymium iron boron permanent magnets and
does not lose its magnetism at 120°C. It uses high-quality
elastic couplings for direct drive. The permanent magnet is
integrated into the main unit of the compressor, making the
structure more compact and the transmission accuracy and
efficiency higher.
- First-class energy efficiency: The two-stage dual-drive structure independently controls low-pressure and high-pressure rotors separately, achieving optimal pressure ratio split. It reaches national first-class energy efficiency rating and keeps superior energy performance under varied working conditions.
- High efficiency and energy saving: Independent variable frequency regulation for each rotor set matches compression output precisely to air demand. It minimizes internal leakage and throttling loss, bringing more prominent energy-saving effect than single-drive two-stage compressors.
- IP65 protection class: The driving motor adopts IP65 protection grade, fully dust-tight and resistant to water splash. It adapts well to dusty, humid and harsh industrial environments and reduces the risk of motor damage.
Specification
| Model | Power(kw) | Rated Pressure(MPa) | Pressure Range(MPa) | Displacement m³/min | Weight(kg) | Noise dB(A) | Outlet | Dimension (L×W×H) mm | Remark |
|---|---|---|---|---|---|---|---|---|---|
| JF-75AHV JF-75WHV | 55 | 0.5 | 0.4-0.5 | 6.36-15.90 | 1350 | 67±2 | G2" | 2130×1440×1750 | Motor Protection Class: IP65 Motor Cooling Type: Water-cooled Cooling Type: Air-cooled Fan Type: Backward-curved Centrifugal Motor Type: Permanent Magnet Synchronous Transmission Type: Integrated |
| 0.7 | 0.6-0.8 | 5.08-12.70 | |||||||
| 1 | 0.8-1.0 | 4.56-11.40 | |||||||
| 1.3 | 1.0-1.3 | 3.72-9.30 | |||||||
| JF-100AHV JF-100WHV | 75 | 0.5 | 0.5 | 7.98-19.95 | 1750 | 70±2 | G2 ½" | 2130×1440×1750 | |
| 0.7 | 0.6-0.8 | 6.60-16.50 | |||||||
| 1 | 0.8-1.0 | 5.68-14.30 | |||||||
| 1.3 | 1.0-1.3 | 4.69-11.73 | |||||||
| JF-120AHV JF-120WHV | 90 | 0.5 | 0.4-0.5 | 9.40-23.50 | 2530 | 72±2 | DN65 | 2700×1800×1950 | |
| 0.7 | 0.6-0.8 | 8.08-20.02 | |||||||
| 1 | 0.8-1.0 | 7.16-17.19 | |||||||
| 1.3 | 1.0-1.3 | 5.88-14.70 | |||||||
| JF-150AHV JF-150WHV | 110 | 0.5 | 0.5 | 10.96-27.40 | 2600 | 75±2 | DN65 | 2700×1800×1950 | |
| 0.7 | 0.6-0.8 | 9.68-24.20 | |||||||
| 1 | 0.8-1.0 | 8.32-20.80 | |||||||
| 1.3 | 1.0-1.3 | 6.32-15.80 | |||||||
| JF-175AHV JF-175WHV | 132 | 0.5 | 0.4-0.5 | 14.76-36.90 | 2735 | 77±2 | DN80 | 2980×1800×1950 | |
| 0.7 | 0.6-0.8 | 11.20-28.00 | |||||||
| 1 | 0.8-1.0 | 9.44-23.60 | |||||||
| 1.3 | 1.0-1.3 | 9.24-23.10 | |||||||
| JF-200AHV JF-200WHV | 160 | 0.5 | 0.5 | 17.20-42.80 | 4200 | 79±2 | DN100 | 3450×2000×2200 | |
| 0.7 | 0.6-0.8 | 13.44-33.60 | |||||||
| 1 | 0.8-1.0 | 11.36-28.4 | |||||||
| 1.3 | 1.0-1.3 | 9.88-24.70 | |||||||
| JF-250AHV JF-250WHV | 185 | 0.7 | 0.6-0.8 | 15.12-37.80 | 4350 | 80±2 | DN100 | 3450×2000×2200 | |
| 1 | 0.8-1.0 | 13.60-33.60 | |||||||
| 1.3 | 1.0-1.3 | 11.24-28.10 | |||||||
| JF-270AHV JF-270WHV | 200 | 0.7 | 0.6-0.8 | 17.22-43.05 | 5150 | 82±2 | DN100 | 3450×2000×2200 | |
| 1 | 0.8-1.0 | 14.64-36.60 | |||||||
| 1.3 | 1.0-1.3 | 12.92-32.30 |
If you have additional production specifications and purity requirements, you can
contact
our equipment engineers for professional answers and one-on-one customized solutions with the opportunity to receive discounted pricing!
